INNOSIL 150 fumed silica

INNOSIL 150

INNOSIL150 FUMED SILICA

INNOSIL 150 is a fumed silica has similar main specifications to Aerosil 150/Cabosil LM-150/Wacker HDK V15. Our customers use our INNOSIL 150 fumed silica product as replacement to above products, and give positive feedbacks.

INNOSIL150 DATA

Properties
Units
Typical Value
Standardization
Specific surface area (BET)
m2/g
150±25
GB/T10722
pH-value (in 4% dispersion)
3.8-4.5
GB/T1717
Loss on drying, ex works( 2h @ 105°C)
wt%
<1.5
GB/T5211.3
Loss on ignition(2h @ 1000, based on material dried for 2h @ 105°C)
wt%
<2.5
GB/T20020
Sieve residue (45μm)
%
<0.05
GB/T5211.14
SiO2 content (based on the substance heated at 1000°C for 2 h)
wt%
>99.8
GB/T20020
Tamped density (based on material dried for 2h @ 105°C)
g/L
25~60
GB/T5211.4
Carbon content (based on material dried for 2h @ 105°C)
wt%
<0.2
GB/T20020

Category: Tag:

Description

INNOSIL150 APPLICATIONS & FUNCTIONS

Applications

  • RTV Silicone Sealant
  • HTV Silicone Rubber
  • Vacuum Insulation Panel
Functions:

  • Provide the good reinforcement and thixotropy for RTV silicone sealant
  • Improve the reinforcement for HTV Silicone Rubber
  • Heat and sound insulation

INNOSIL 150 in Adhesives and Sealants


INNOSIL 150 fumed silica is widely used in all kinds of adhesive and sealants industries, e.g. silicone sealants, PVC-plastisol sealant, polyacrylate sealant, expoxy adhesive, polyurethane adhesive, unsaturated polyester, polyurethane water-based adhesive, etc.

It is mainly used as additives for anti-sag, rheology control and anti-settling; also used as rheology control and reinforcing agents in sealants, and improves the storage stability and processability of adhesives and sealants.

INNOSIL 150 in RTV and Silicone Sealant

INNOSIL 150 fumed silica provides thixotropy and reinforcement for RTV silicone sealants, while its shear-thinning property provides thickening and sag resistance at rest or low shear and thinning at high shear for easy application.

* Please refer to TDS, products selection guide, or contact us for applications advice and detailed usage info.

Packaging & Delivery of INNOSIL 150


Packaging

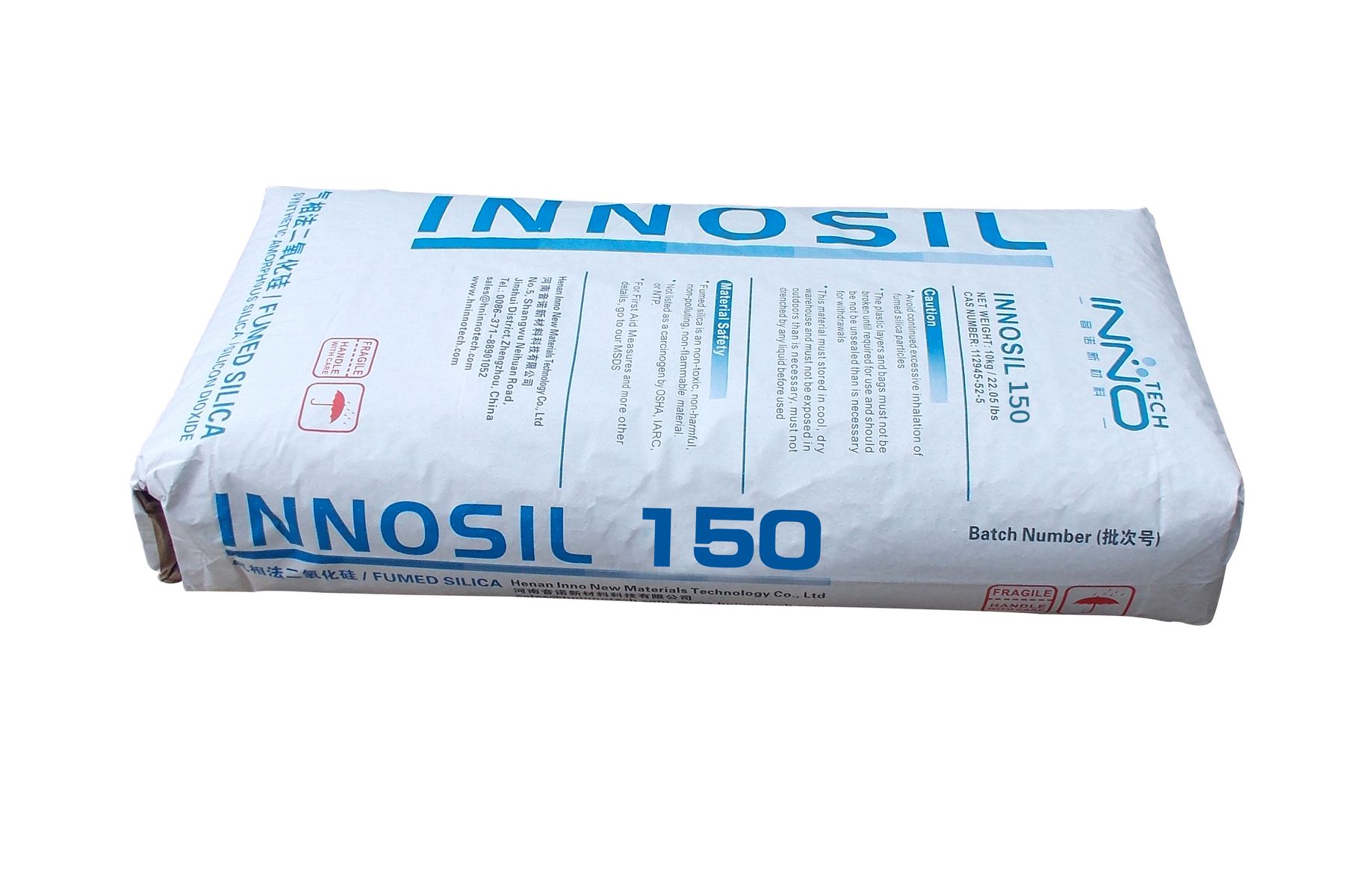

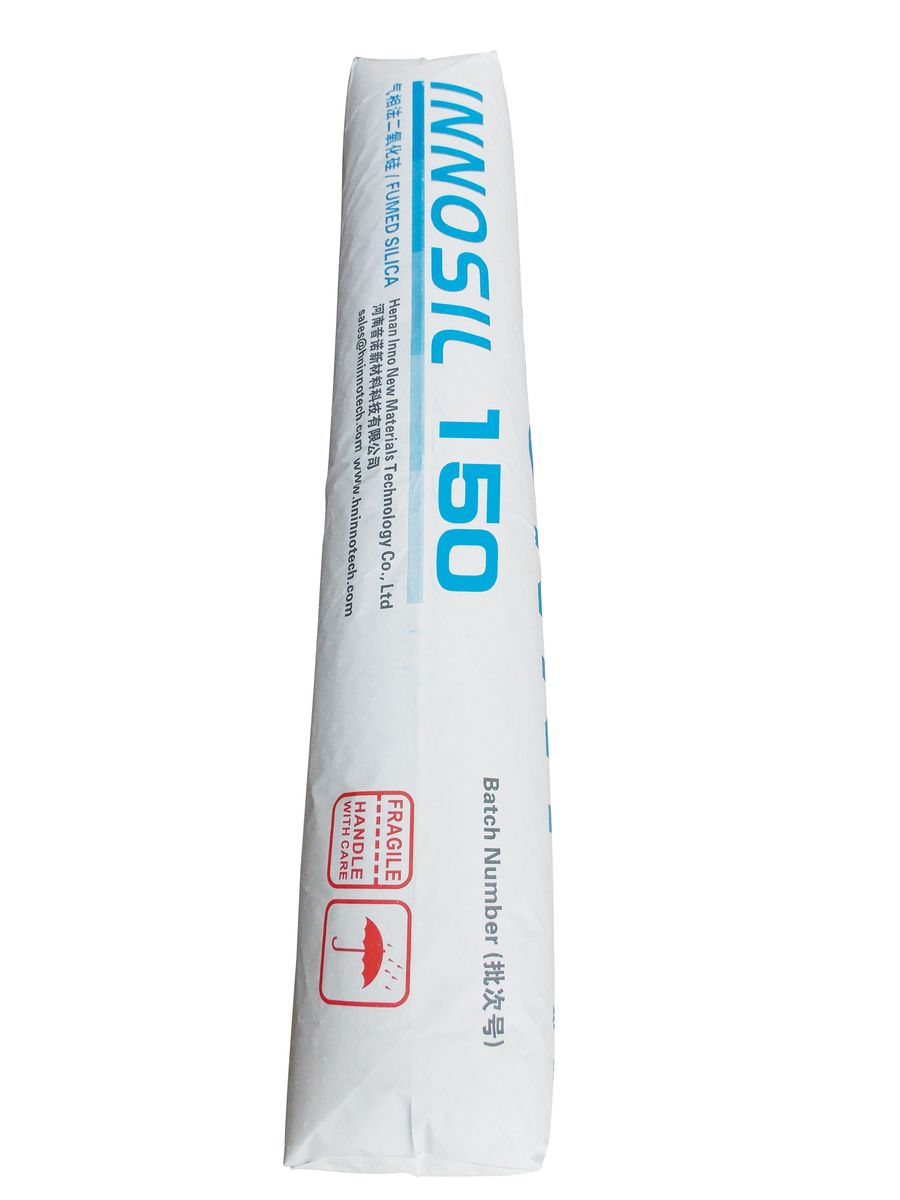

Due to its strong moisture-absorbing, fumed silica has strict requirement of moisture proofing. Our package meets this requirement:

  • Products filled into the package by vacuum packing machine
  • The bag is composed by three layer of kraft paper and one layer of plastic

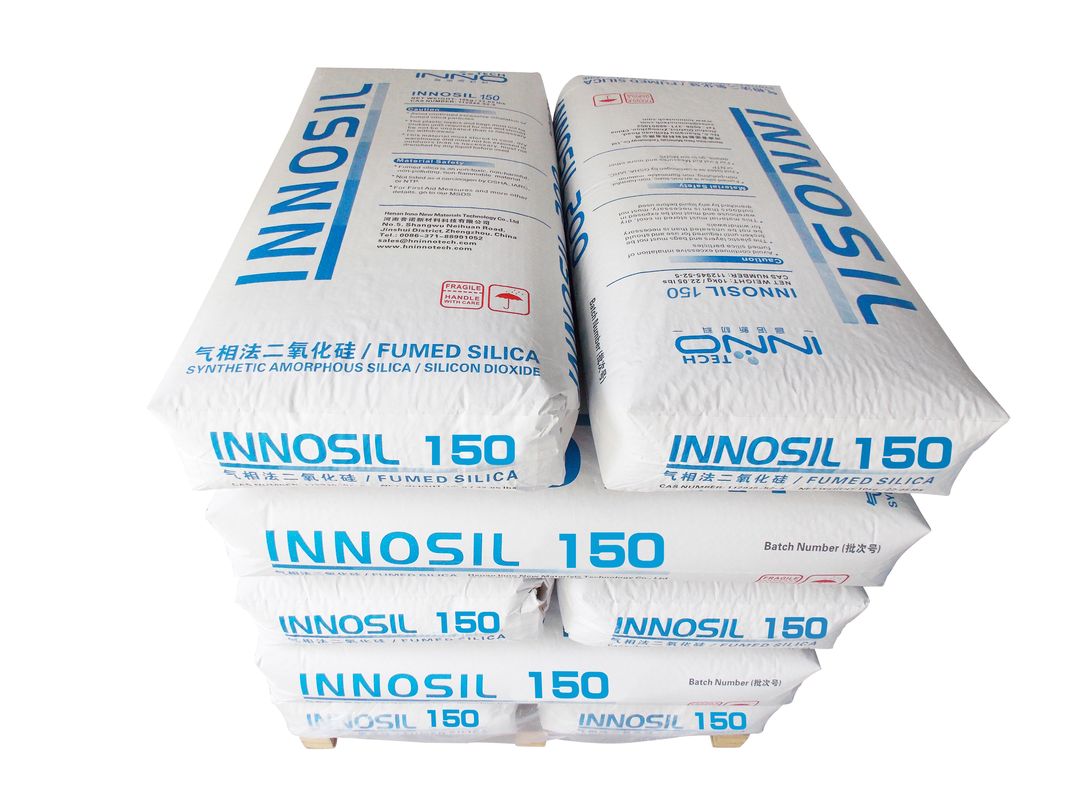

  • The bags are stacked on a pallet, with plastic layer(s) sealed around

Minimum Order Amount

Considering the package, transfer cost and other factors, we list suggest minimum order quantity for your reference:

  • 10kg for aircraft
  • Batch order: 1800kg(20ft container FCL) for sea shipping
  • Small batch order: 180kg(1 pallet) for sea shipping

Details of Sea Shipping

20’GP CONTAINER
1.8 tons
10 pallets
180KG/pallet
40’GP CONTAINER
3.6 tons
20 pallets
180KG/pallet
40’HQ CONTAINER
4.0 tons
20 pallets
200KG/pallet

FAQ(Frequently Asked Questions)

1. How could I choose proper fumed silica product?
– Please tell us your application, our tech department will give professional advice;
– Provide the brand, grade of currently using fumed silica, we will find equivalent grade of INNOSIL fumed silica.
After that, we can provide samples for testing.

2. How to require samples, what’s the cost and time?
– Plese contact us for proper grades, and usually takes 1 to 7 days to prepare.
– Smaller amount of samples for lab test is totally free; While applicator need to pay the freight for larger amount

3. Delivery time
– The avareage delivery time is 7 to14 days after receiving payment.
